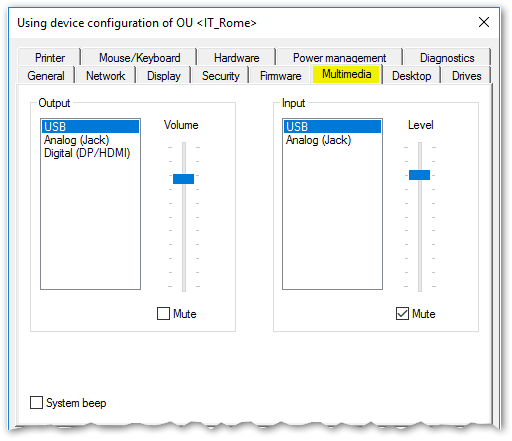

Multimedia tab
The audio output devices are grouped in classes depending on their connector:
| USB | USB port |
| Analog | TRS audio jack (phone connector) or integrated devices |
| Digital | DisplayPort or HDMI |
For each device class, you can control the volume level and Mute option separately.
By default, the priority is defined: USB – Analog – Digital.
- To change priority, move the list entries by using drag-and-drop operations.
The audio input devices are grouped in classes depending on their connector:
| USB | USB port |
| Analog | TRS audio jack (phone connector) or integrated devices |
For each device class, you can control the sensitivity and Mute option separately.
By default, the priority is defined: USB – Analog.
- To change priority, move the list entries by using drag-and-drop operations.
| Option | Description |
|---|---|
| Volume (Output) | Slider to control the playback sound level for the selected device class (0 to 100) |
| Sensitivity (Input) | Slider to control the level of sensitivity for recording for the selected device class (0 to 100) |
| Mute (Output and input) | No sound is reproduced / recorded |
| System beep | Acoustic feedback signal when switching off the device |
| Priority of device classes | By using drag-and-drop operations, you can change the priority of the device classes for input and output. The top entry has the highest priority. |
